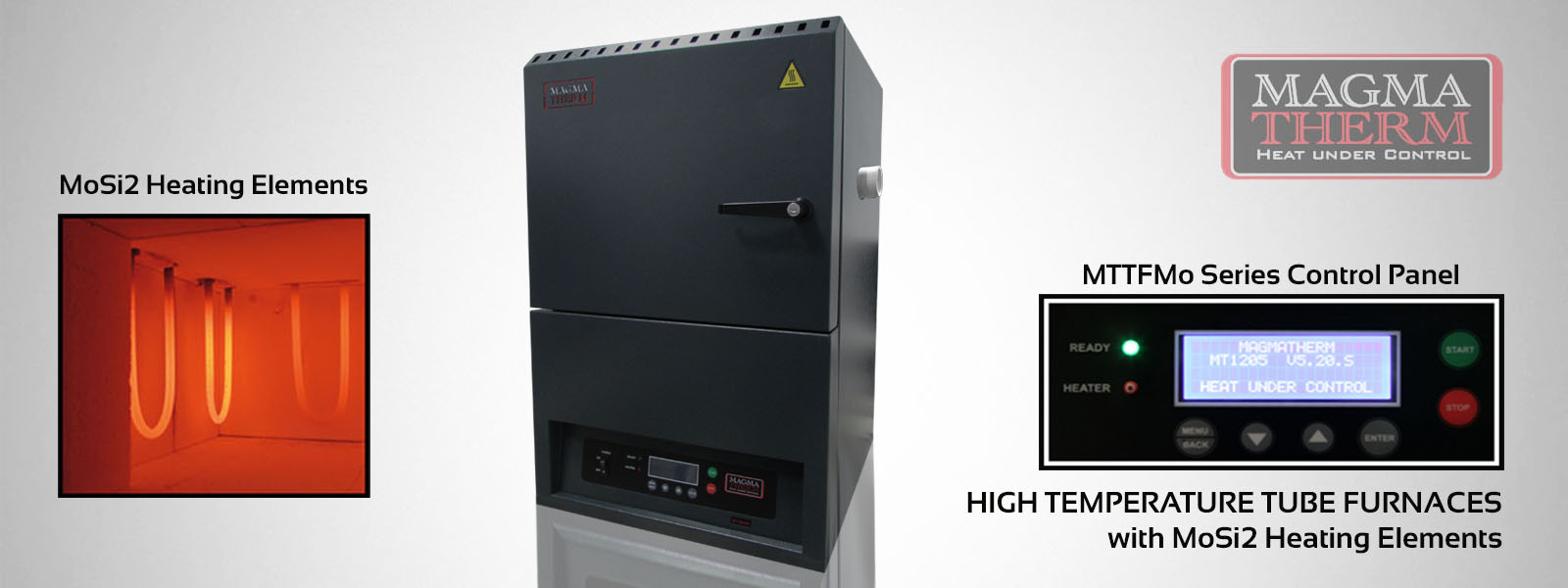

MagmaTherm High Temperature Tube Furnaces with MoSi2 Heating Elements are the right choice for work in reliable protective atmosphere conditions and high temperatures 1600°C to 1750°C. These series have the features such as design of minimizing the aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation, High-Speed Heating at cold start, Unique Electronic Design and Software, Current Limit Control for Safe Use, Homogeneous Temperature Distribution, programming with easy-to-understand menu on 4-line LCD display, high-precision measurement in wide temperature range, heating elements which are selected and designed according to their proper working temperatures and providing fast heating of the furnace, 50/75/100 tube diameters and 300/450/500/600/800 heated zone length options.

High Temperature Tube Furnaces with MoSi2 Heating Elements (MTTFMo Series 1600°C - 1750°C)

1600 °C - 50 mm Tube Inner - 300 mm Heated Zone

MTTFMo-1600-50-300-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1600°C Continuous Working Temperature 50 mm Tube Inner Diameter 300 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with S Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 50 [mm] Heated Zone Length 300 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1600 °C - 50 mm Tube Inner - 450 mm Heated Zone

MTTFMo-1600-50-450-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1600°C Continuous Working Temperature 50 mm Tube Inner Diameter 450 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with S Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 50 [mm] Heated Zone Length 450 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1600 °C - 50 mm Tube Inner - 600 mm Heated Zone

MTTFMo-1600-50-600-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1600°C Continuous Working Temperature 50 mm Tube Inner Diameter 600 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with S Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 50 [mm] Heated Zone Length 600 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1600 °C - 75 mm Tube Inner - 450 mm Heated Zone

MTTFMo-1600-75-450-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1600°C Continuous Working Temperature 75 mm Tube Inner Diameter 450 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with S Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 75 [mm] Heated Zone Length 450 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1600 °C - 75 mm Tube Inner - 600 mm Heated Zone

MTTFMo-1600-75-600-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1600°C Continuous Working Temperature 75 mm Tube Inner Diameter 600 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with S Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 75 [mm] Heated Zone Length 600 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1600 °C - 75 mm Tube Inner - 800 mm Heated Zone

MTTFMo-1600-75-800-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1600°C Continuous Working Temperature 75 mm Tube Inner Diameter 800 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with S Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 75 [mm] Heated Zone Length 800 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1600 °C - 100 mm Tube Inner - 500 mm Heated Zone

MTTFMo-1600-100-500-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1600°C Continuous Working Temperature 100 mm Tube Inner Diameter 500 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with S Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 100 [mm] Heated Zone Length 500 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1600 °C - 100 mm Tube Inner - 800 mm Heated Zone

MTTFMo-1600-100-800-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1600°C Continuous Working Temperature 100 mm Tube Inner Diameter 800 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with S Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 100 [mm] Heated Zone Length 800 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1700 °C - 50 mm Tube Inner - 300 mm Heated Zone

MTTFMo-1700-50-300-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1700°C Continuous Working Temperature 50 mm Tube Inner Diameter 300 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 50 [mm] Heated Zone Length 300 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1700 °C - 50 mm Tube Inner - 450 mm Heated Zone

MTTFMo-1700-50-450-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1700°C Continuous Working Temperature 50 mm Tube Inner Diameter 450 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 50 [mm] Heated Zone Length 450 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1700 °C - 50 mm Tube Inner - 600 mm Heated Zone

MTTFMo-1700-50-600-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1700°C Continuous Working Temperature 50 mm Tube Inner Diameter 600 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 50 [mm] Heated Zone Length 600 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1700 °C - 75 mm Tube Inner - 450 mm Heated Zone

MTTFMo-1700-75-450-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1700°C Continuous Working Temperature 75 mm Tube Inner Diameter 450 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 75 [mm] Heated Zone Length 450 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1700 °C - 75 mm Tube Inner - 600 mm Heated Zone

MTTFMo-1700-75-600-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1700°C Continuous Working Temperature 75 mm Tube Inner Diameter 600 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 75 [mm] Heated Zone Length 600 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1700 °C - 75 mm Tube Inner - 800 mm Heated Zone

MTTFMo-1700-75-800-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1700°C Continuous Working Temperature 75 mm Tube Inner Diameter 800 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 75 [mm] Heated Zone Length 800 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1700 °C - 100 mm Tube Inner - 500 mm Heated Zone

MTTFMo-1700-100-500-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1700°C Continuous Working Temperature 100 mm Tube Inner Diameter 500 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 100 [mm] Heated Zone Length 500 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1700 °C - 100 mm Tube Inner - 800 mm Heated Zone

MTTFMo-1700-100-800-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1700°C Continuous Working Temperature 100 mm Tube Inner Diameter 800 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 100 [mm] Heated Zone Length 800 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1750 °C - 50 mm Tube Inner - 300 mm Heated Zone

MTTFMo-1750-50-300-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1750°C Continuous Working Temperature 50 mm Tube Inner Diameter 300 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 50 [mm] Heated Zone Length 300 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1750 °C - 50 mm Tube Inner - 450 mm Heated Zone

MTTFMo-1750-50-450-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1750°C Continuous Working Temperature 50 mm Tube Inner Diameter 450 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 50 [mm] Heated Zone Length 450 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1750 °C - 50 mm Tube Inner - 600 mm Heated Zone

MTTFMo-1750-50-600-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1750°C Continuous Working Temperature 50 mm Tube Inner Diameter 600 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 50 [mm] Heated Zone Length 600 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1750 °C - 75 mm Tube Inner - 450 mm Heated Zone

MTTFMo-1750-75-450-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1750°C Continuous Working Temperature 75 mm Tube Inner Diameter 450 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 75 [mm] Heated Zone Length 450 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1750 °C - 75 mm Tube Inner - 600 mm Heated Zone

MTTFMo-1750-75-600-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1750°C Continuous Working Temperature 75 mm Tube Inner Diameter 600 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 75 [mm] Heated Zone Length 600 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1750 °C - 75 mm Tube Inner - 800 mm Heated Zone

MTTFMo-1750-75-800-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1750°C Continuous Working Temperature 75 mm Tube Inner Diameter 800 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 75 [mm] Heated Zone Length 800 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1750 °C - 100 mm Tube Inner - 500 mm Heated Zone

MTTFMo-1750-100-500-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1750°C Continuous Working Temperature 100 mm Tube Inner Diameter 500 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 100 [mm] Heated Zone Length 500 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5

1750 °C - 100 mm Tube Inner - 800 mm Heated Zone

MTTFMo-1750-100-800-E4/U8/S16
General Features
High Temperature Tube Furnaces with MoSi2 Heating Elements 1750°C Continuous Working Temperature 100 mm Tube Inner Diameter 800 mm Heated Zone Length Unique Electronic Design and Software Current Limit Control for Safe Use High Alumina Ceramic Fiber Insulation The Right Choice for a Homogeneous Temperature Distribution and Reliable Protective Atmosphere Design of Minimizing the Aging of MoSi2 Heating Elements with Phase-Angle Controlled Voltage Regulation Accurate Measurement and Temperature Control with B Type Thermocouple/li> High Precision Measurement of the Real Temperature of Inner Chamber Gas Inlet and Evacuation System Option for Protective Atmosphere High-Precise Temperature Control over Wide Working Temperature Range ± 1°C Control Accuracy Second Thermocouple Option Adjustable for Different Processes Programming with Easy-to-Understand Menu on 4-Line LCD Display Low External Surface Temperature with Dual Layer Housing Heating Elements which are Selected and Designed According to Their Proper Working Temperatures and Providing Fast Heating of the Furnace Optional Features such as Protective Gas Connections, Flowmeter / Rotameter, Gas Regulator, Flange Applications, Vacuum Equipment, Vertical Design, Double Tube Design, Pc Connection 2 Years Warranty
Technical Specifications
Tube Inner Diameter 100 [mm] Heated Zone Length 800 [mm] Heating Element Type MoSi2 (Molibden Disilisit) Thermocouple Type S/B Type	Tube Type Alumina Insulation Material Ceramic Fibre Blanket Housing Material Steel Sheet Housing Coating Epoxy Powder Coating
Control Unit Features
E4 Software Option
Software Based PID Control YES Display 4 Line LCD Heating Program 8 Step Custom Preset Program 4 Heating Rate °C/min. °C/dk. 1-20* Date & Time YES Sound Warning at Step Changes YES Auto Start at Certain Date YES Show Remaining Waiting Time YES *Independent for Each Level	Skip the Waiting Time YES Temperature Calibration via Menu ( ±10°C ) YES Sound Warning at the End of the Program YES Total Working Hour Counter YES Calculator for Average Working Temperature YES Instantaneous Energy Consumption YES Over Heating Cut Off YES Door Sensor OPTIONAL Pc Connection OPTIONAL Warranty Period 2 Years
U8 Software Option (In addition to E4 software Features)
Heating Program 16 Step	Custom Preset Program 6
S16 Software Option (In addition to U8 software Features)
Heating Program 32 Step Only 5th Memory Supports 32 Levels	Custom Preset Program 5
